Tension & Compression Rod End Load Cells

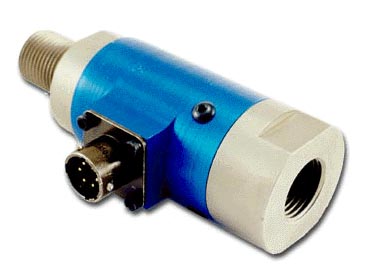

Futek L1658 tension and compression rod end load cells have a capacity of 1000 lb, and are made of aluminum.

Other Futek L1658 tension and compression rod end load cells available capacities are 2000 lb, 3000 lb, 5000 lb and 10000 lb please contact us for details on those capacities.

Other Futek tension and compression rod end load cell models and capacities available please contact us for details.

L1650 - 25 lb to 5000 lb depending
on thread size
L1652 - 1000 lb, 2000 lb, 3000 lb capacity
L1656 - 2500 lb to 5000 lb depending
on thread size
L1657 - 250 lb, 500 lb, 1000 lb capacity
L1659 - 5000 lb, 10000 lb, 20000 lb capacity

L2820 - 2000 lb to 10000 lb capacity
depending on thread size
L2822 - 2000 lb to 20000 lb capacity
depending on thread size
L2902 - 250 lb to 50000 lb capacity
depending on thread size
L2930 - 100 lb, 200 lb, 500 lb, 1000 lb,
2000 lb, 3000 lb, 5000 lb capacity

Capacity	�	1000 lb More Capacities
Thread Size	�	3/4-16 Contact Us for Other Threads
Material	�	Aluminum
Resistance	�	350 ohms
Rated Output (R.O.)	�	2 mV/Vnom.
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	18 max., 10 test
Bridge Resistance	�	350 ohms nom.
Non-Linearity	�	0.5% of R.O.
Hysteresis	�	0.5% of R.O.
Nonrepeatability	�	0.1% of R.O.
Creep	�	0.15% of Load
Zero Balance	�	3% of R.O.
Temp. Shift Zero	�	� 0.005% of R.O./�F
Temp. Shift Span	�	� 0.01% of R.O./�F
Compensated Temp.	�	60 to 160 �F
Operating Temp.	�	-60 to 200 �F
*Actual level of accuracy depends on mounting method

.Option Package

	- Futek Standard -
�	Connector: Bendix Receptacle, Pt02a-10-6p

L1658 Tension & Compression Rod End Load Cell Wiring Code Diagram

FP11368-00242-C
.

Wiring Code

+ Excitation	�	Red
+ Sense	�	Orange
+ Signal	�	Green
- Signal	�	White
- Sense	�	Blue
- Excitation	�	Black

More Capacities

Capacity	�	2000 lb
Thread Size	�	3/4-16 Contact Us for Other Threads
Material	�	Aluminum
Resistance	�	350 ohms
Rated Output (R.O.)	�	2 mV/Vnom.
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	18 MAX, 10 VDC TEST
Bridge Resistance	�	350 ohms nom.
Non-Linearity	�	� 0.5% of R.O.
Hysteresis	�	� 0.5% of R.O.
Nonrepeatability	�	� 0.1% of R.O.
Creep	�	� 0.15% of Load
Temp. Shift Zero	�	� 0.005% of R.O./�F
Temp. Shift Span	�	� 0.01% of R.O./�F
Compensated Temp.	�	60 to 160 �F
Operating Temp.	�	-60 to 200 �F
*Actual level of accuracy depends on mounting method

Capacity	�	3000 lb
Thread Size	�	3/4-16 Contact Us for Other Threads
Material	�	17-4 Ph S.S.
Resistance	�	350 ohms
Rated Output (R.O.)	�	2 mV/V nom.
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	18 MAX, 10 VDC TEST
Bridge Resistance	�	350 ohms nom.
Non-Linearity	�	� 0.5% of R.O.
Hysteresis	�	� 0.5% of R.O.
Nonrepeatability	�	� 0.1% of R.O.
Creep	�	� 0.15% of Load
Temp. Shift Zero	�	� 0.005% of R.O./�F
Temp. Shift Span	�	� 0.01% of R.O./�F
Compensated Temp.	�	60 to 160 �F
Operating Temp.	�	-60 to 200 �F
*Actual level of accuracy depends on mounting method

Capacity	�	5000 lb
Thread Size	�	3/4-16 Contact Us for Other Threads
Material	�	17-4 Ph S.S.
Resistance	�	350 ohms
Rated Output (R.O.)	�	2 mV/Vnom.
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	18 MAX, 10 VDC TEST
Bridge Resistance	�	350 ohms nom.
Non-Linearity	�	� 0.5% of R.O.
Hysteresis	�	� 0.5% of R.O.
Nonrepeatability	�	� 0.1% of R.O.
Creep	�	� 0.15% of Load
Temp. Shift Zero	�	� 0.005% of R.O./�F
Temp. Shift Span	�	� 0.01% of R.O./�F
Compensated Temp.	�	60 to 160 �F
Operating Temp.	�	-60 to 200 �F
*Actual level of accuracy depends on mounting method

Capacity	�	10000 lb
Thread Size	�	3/4-16 Contact Us for Other Threads
Material	�	17-4 Ph S.S.
Resistance	�	350 ohms
Rated Output (R.O.)	�	2 mV/Vnom.
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	18 MAX, 10 VDC TEST
Bridge Resistance	�	350 ohms nom.
Non-Linearity	�	� 0.5% of R.O.
Hysteresis	�	� 0.5% of R.O.
Nonrepeatability	�	� 0.1% of R.O.
Creep	�	� 0.15% of Load
Temp. Shift Zero	�	� 0.005% of R.O./�F
Temp. Shift Span	�	� 0.01% of R.O./�F
Compensated Temp.	�	60 to 160 �F
Operating Temp.	�	-60 to 200 �F
*Actual level of accuracy depends on mounting method
