Himmelstein LVDT's (Linear Variable Differential Transformer) will provide an extremely precise measurement of displacement for most gaging applications. They combine the rugged construction required for industrial applications with the precision normally associated with laboratory devices. These models are ideally suited for electronic gaging systems, automatic inspection systems and position feedback control.
| Key Features:
|
Applications:
|
- Precision Gage Heads ranging from ±0.020" to ±0.200"
- Long Stroke Displacement Transducers Ranging from ±0.60" to ±12.0"
- High Repeatability
- ±0.3% of Full Scale Linearity
- NIST Traceable Calibration
|
- Thickness
- Axial and Radial Runout
- Gear Backlash
- Inside and Outside Diameters
- Perpendicularity
- Concentricity
- Taper
|
LVTG-4000 Precision Gage Heads:
- Repeatability =< 60 microinches
- Excitation - 1-2 V rms at 3-5 kHz
| Model LVTG-4000 Precision Gage Heads: |
| |
Model Number LVTG-4000-
|
| 40
|
60
|
100
|
200
|
400
|
| Linear Stroke (in) |
±0.040
|
±0.060
|
±0.100
|
±0.200
|
±0.400
|
| Linear Stroke (mm) |
±1.0
|
±1.5
|
±2.5
|
±5.0
|
±10.0
|
| Outward Travel from Zero (in) |
0.045
|
0.065
|
0.104
|
0.203
|
0.400
|
Inward Travel from
Zero (in) |
0.053
|
0.092
|
0.130
|
0.230
|
0.420
|
Spring Preload at
Zero (oz) |
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
| Spring Rate (oz/10 mils) |
0.13
|
0.09
|
0.12
|
0.09
|
0.09
|
| Nominal Sensitivity (mV/V/mil) |
5.1
|
3.4
|
2.0
|
1.0
|
0.5
|

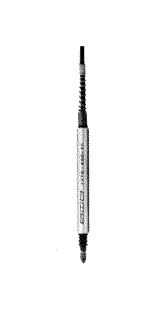

LVTG-400-40
| Model LVTG-6000 Long Stroke Displacement Transducers:
|
| |
Model Number LVTG-6000-
|
| 600
|
1000
|
2000
|
4000
|
6000
|
1000
|
12000
|
| Linear Stroke (in) |
±0.60
|
±1.0
|
±2.0
|
±4.0
|
±6.0
|
±10.0
|
±12.0
|
| Linear Stroke (mm) |
±15
|
±25
|
±50
|
±100
|
±150
|
±250
|
±300
|
| Spring Preload at Zero (oz) |
3.9
|
5.3
|
6.5
|
4.2
|
4.2
|
(Unsprung Only)
|
Spring Rate
(ozs/10 mils) |
0.03
|
0.02
|
0.018
|
0.011
|
0.009
|
(Unsprung Only)
|
| Body Weight (oz) |
2.1
|
3.4
|
6.0
|
21
|
32
|
46
|
56
|
| Plunger Weight (oz) |
0.35
|
0.63
|
0.88
|
1.9
|
2.8
|
3.7
|
4.3
|
| Nominal Sensitivity (mV/V/mil) |
0.84
|
0.51
|
0.24
|
0.13
|
0.081
|
0.053
|
0.043
|

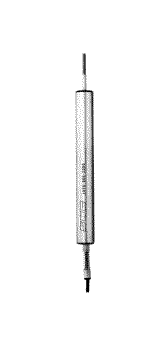

LVTG-600-2000
