Low Profile Tension And Compression Load Cells

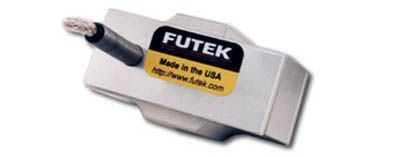

Futek L2320 low profile tension and compression load cells for various tension or compression internal thread mount load cells.

Capacities for the L2320 range from 10 lb to 1000 lb depending on thread size.

Other low profile tension and compression load cells models are avaialble please contact us for details:


  • L1652 - capacity 1000 lb, 2000 lb, 3000 lb


  • L1658 - capacity 1000 lb, 2000 lb, 3000 lb, 5000 lb, 10000 lb


  • L1659 - capacity 5000 lb,
    10000 lb, 20000 lb


  • L1665 - capacity 10 lb, 25 lb,
    50 lb, 100 lb, 250 lb, 500 lb


  • L1668 - capacity 50 lb, 100, lb, 250 lb

  • L2338 - capacity 10 g, 0.25 lb,
    0.5 lb, 1 lb, 2.2 lb, 5 lb, 10 lb,
    25 lb, 50 lb, 100 lb

  • L2350 - capacity 25 lb to 10000 lb depending on thread size

  • L2351 - capacity 25 lb to 10000 lb depending on thread size

  • L2352 - capacity 25 lb, 50 lb,
    100 lb, 200 lb, 300 lb

  • L2353 - capacity 25 lb, 50 lb,
    100 lb, 200 lb, 300 lb



  • L2355 - capacity 10000 lb,
    25000 lb


  • L2356
    - capacity 10000 lb,
    25000 lb


  • L2361- capacity 10 lb, 25 lb,
    50 lb, 100 lb, 200 lb, 300 lb



  • L2362 - capacity 500 lb, 1000 lb


  • L2363 - capacity 2000 lb, 3000 lb


  • L2364 - capacity 5000 lb

  • L2365 - capacity 10000 lb



  • L2372 - capacity 500 lb, 1000 lb


  • L2821 - capacity 125000 lb


  • L2900 - capacity 300 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb, 10000 lb


  • L2901 - capacity 300 lb to 250000 lb depending on thread size


  • L2920 - capacity 250 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb


  • L2930 - capacity 250 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb


  • Q07469 - capacity 225000 lb

  • Q10476 - capacity 2000 lb
  Capacity · 10 lb - Contact Us for Other Capacities
  Thread Size · #10-32 - Contact Us for Other Threads
  Material · Aluminum
  Resistance · 350 ohms
  Rated Output (R.O.) · 2 mV/V nom.
  Safe Overload · 150% of R.O.
  Excitation (VDC or VAC) · 15 max., 10 test
  Bridge Resistance · 350 ohms nom.
  Non-Linearity · 0.1% of R.O.
  Hysteresis · 0.1% of R.O.
  Nonrepeatability · 0.05% of R.O.
  Creep · 0.05% of Load
  Zero Balance · 1% of R.O.
  Temp. Shift Zero · ± 0.005% of R.O./ºF
  Temp. Shift Span · ± 0.005% of R.O./ºF
  Compensated Temp. · 60 to 160 ºF
  Operating Temp. · -60 to 200 ºF

  *Actual level of accuracy
  depends on mounting
  method



.Option Package

- Futek Standard -

· Cable: 28 Awg 4 Conductor Shielded Clear Pvc Cable (10 ft 0 in)

L2320 Low Profile Tension And Compression Load Cell Wiring Code Diagram


FP10100-00405-C
.


Wiring Code

  + Excitation · Red
  + Sense ·

- -

  + Signal · Green
  - Signal · White
  - Sense · - -
  - Excitation · Black
