Torque Wrench

Torque wrench is commonly used for fastener torque auditing.

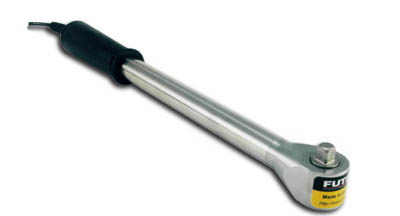

Futek torque wrench T6000 is shown with 120 in-lb capacity other capacities available please contact us for details.

Futek offers other torque wrenches please contact us for details.


T6005

  Capacity · 120 in-lb - Contact Us For Other Capacities
  Material · Stainless Steel
  Resistance · 350 ohms
  Rated Output (R.O.) · 1.4-3.0 mV/V
  Safe Overload · 150% of R.O.
  Excitation (VDC or VAC) · 18 max., 10 test
  Bridge Resistance · 350 ohms nom.
  Non-Linearity · 0.25% of R.O.
  Hysteresis · 0.25% of R.O.
  Nonrepeatability · 0.1% of R.O.
  Creep · of Load
  Zero Balance · 5% of R.O.
  Temp. Shift Zero · ± 0.01% of R.O./ºF
  Temp. Shift Span · ± 0.02% of R.O./ºF
  Compensated Temp. · 60 to 160 ºF
  Operating Temp. · -40 to 180 ºF

  *Actual level of accuracy
  depends on mounting
  method



.Option Package

- Futek Standard -

· Cable: 28 Awg 6 Conductor Retractile Pvc Cable (2 ft 0 in)

T6000 Torque Wrench Wiring Code Diagram


FP10699-00228-C
.


Wiring Code

  + Excitation · Red
  + Sense ·

Orange

  + Signal · Green
  - Signal · White
  - Sense · Blue
  - Excitation · Black
