Screw Driver Torque Sensors

Screw driver torque sensors are used in low torque fastener torque auditing assembly.

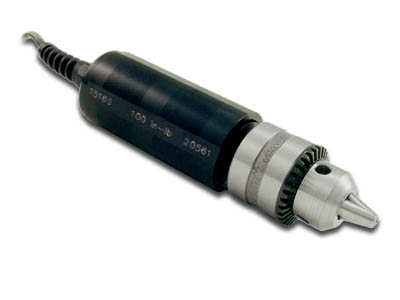

Futek T5165 screw driver torque sensor is shown with 3 in-lb capacity. Other capacities are available 12 in-lb, 50 in-lb, 100 in-lb, 50 in-oz, please contact us for details.

Futek offers other screw driver torque sensor models please contact us for details:


T5175 - capacities 3 in-lb, 50 in-oz, 100 in-oz

  Capacity · 3 in-lb - Contact Us For Other Capacities
  Material · Aluminum
  Resistance · 1000 ohms
  Rated Output (R.O.) · 1.4-3.0 mV/V
  Safe Overload · 150% of R.O.
  Excitation (VDC or VAC) · 18 max., 10 test
  Bridge Resistance · 1000 ohms nom.
  Non-Linearity · 0.2% of R.O.
  Hysteresis · 0.2% of R.O.
  Nonrepeatability · 0.1% of R.O.
  Creep · of Load
  Zero Balance · 5% of R.O.
  Temp. Shift Zero · ± 0.002% of R.O./ºF
  Temp. Shift Span · ± 0.002% of R.O./ºF
  Compensated Temp. · 60 to 160 ºF
  Operating Temp. · -40 to 180 ºF

  *Actual level of accuracy depends on mounting method



.Option Package

- Futek Standard -

· Cable: 28 Awg 6 Conductor Retractile Pvc Cable (2 ft 0 in)

T5165 Screw Driver Torque Sensor Wiring Code Diagram


FP10678-00168-C
.


Wiring Code

  + Excitation · Red
  + Sense ·

Orange

  + Signal · Green
  - Signal · White
  - Sense · Blue
  - Excitation · Black
