 Donut load cells for tension or compression, designed for space limited clamping force measurement.

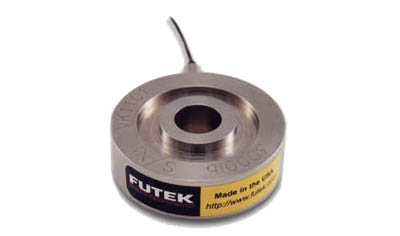

Donut load cells Futek L2760 model shown with 50 lb capacity. Other capacities are 100 lb, 250 lb, 500 lb and 1000 lb for information on these capacities please contact us.
Other Futek donut load cells are available please contact us for details.
-
L2761 - capacity 100 lb, 250 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb
-
L2762 - capacity 250 lb, 500 lb, 1000 lb, 2000 lb, 3000 lb, 5000 lb, 7500 lb, 10000 lb
-
L2763 - capacity 2000 lb, 3000 lb, 5000 lb, 7500 lb, 10000 lb, 15000 lb, 20000 lb, 30000 lb, 50000 lb
| Capacity |
· |
50 lb - Contact Us for Other Capacities |
| Inner Diameter |
· |
3/8 in - Contact Us for Other I.D.'s |
| Material |
· |
17-4 Ph S.S. |
| Resistance |
· |
350 ohms |
| Rated Output (R.O.) |
· |
2 mV/V nom. |
| Safe Overload |
· |
150% of R.O. |
| Excitation (VDC or VAC) |
· |
18 max., 10 test |
| Bridge Resistance |
· |
350 ohms nom. |
| Non-Linearity |
· |
0.5% of R.O. |
| Hysteresis |
· |
0.5% of R.O. |
| Nonrepeatability |
· |
0.5% of R.O. |
| Creep |
· |
of Load |
| Zero Balance |
· |
1% of R.O. |
| Temp. Shift Zero |
· |
± 0.005% of R.O./ºF |
| Temp. Shift Span |
· |
± 0.005% of R.O./ºF |
| Compensated Temp. |
· |
60 to 160 ºF |
| Operating Temp. |
· |
-60 to 200 ºF |
| *Actual level of accuracy
depends on mounting
method
|
|
 |
| .Option Package
|
|
- Futek Standard -
|
| · |
Cable: 29 Awg 4 Conductor Spiral Shielded Teflon Cable (10 ft 0 in) |
|
 |
|
| L2760 Donut Load Cell Wiring Code Diagram
|
|
| FP10311-00119-C
.
|
| Wiring Code
|
|
| + Excitation |
· |
Red |
| + Sense |
· |
- -
|
| + Signal |
· |
Green |
| - Signal |
· |
White |
| - Sense |
· |
- - |
| - Excitation |
· |
Black |
|
|
|
|
|
|
