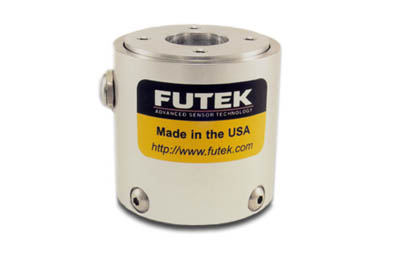

 Reaction torque sensors Futek T5100 is a flange mounted reaction torque transducer.
Torque sensors are transducers that converts a torsional mechanical input into an electrical output signal.
Futek T5100 reaction torque sensors shown with 0.3 in-lb capacity. Other capacities are available please contact us for details.
Futek's other models of reaction torque sensors are below please contact us for details.
T5101 - capacity 100 in-lb, 200 in-lb, 500 in-lb
T5106 - capacity 100 in-lb, 200 in-lb, 500 in-lb, 5 in-oz, 10 in-oz, 20 in-oz, 50 in-oz, 100 in-oz, 160 in-oz, 400 in-oz, 1000 in-oz
T5160 - capacity 12 in-lb, 50 in-lb, 100 in-lb, 20 in-oz, 50 in-oz
T5162 - capacity 100 in-lb, 150 in-lb, 500 in-lb, 1300 in-lb, 3000 in-lb
T5400 - capacity 1000 in-lb to 240000 in-lb depending on OD
| Capacity |
· |
0.3 in-lb - Contact Us For Other Capacities |
| Material |
· |
Aluminum |
| Resistance |
· |
350 ohms |
| Rated Output (R.O.) |
· |
1.5 mV/V nom. |
| Safe Overload |
· |
300% of R.O. |
| Excitation (VDC or VAC) |
· |
18 max., 10 test |
| Bridge Resistance |
· |
350 ohms nom. |
| Non-Linearity |
· |
0.2% of R.O. |
| Hysteresis |
· |
0.2% of R.O. |
| Nonrepeatability |
· |
0.05% of R.O. |
| Creep |
· |
0.1% of Load |
| Zero Balance |
· |
1% of R.O. |
| Temp. Shift Zero |
· |
± 0.002% of R.O./ºF |
| Temp. Shift Span |
· |
± 0.002% of R.O./ºF |
| Compensated Temp. |
· |
60 to 160 ºF |
| Operating Temp. |
· |
-60 to 200 ºF |
| *Actual level of accuracy
depends on mounting
method |
|
 |
| .Option Package |
|
- Futek Standard - |
| · |
Connector: 4 Pin Lemo Receptacle |
|
 |
|
| T5100 Reaction Torque Sensor Wiring Code Diagram |
|
| FP10631-00156-C
. |
| Wiring Code |
|
| + Excitation |
· |
Red |
| + Sense |
· |
- - |
| + Signal |
· |
Green |
| - Signal |
· |
White |
| - Sense |
· |
- - |
| - Excitation |
· |
Black |
|
|
|
|
|
|
