Miniature Titanium Pressure Sensors

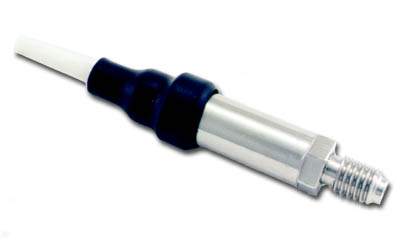

Ultra miniature titanium pressure sensor Futek P1941.

Futek P1941 is a thin film, 20mV output, 10 VDC excitation miniature titanium pressure sensor with a 58 psi capacity.

Other capacities for the P1941 are avaialble please see below for details:

Other miniature titanium pressure sensors available please contact us for details.

P1943 - capacity 4 bar, 6 bar, 10 bar, 16 bar, 20 bar, 40 bar 100 bar

Capacity	�	58 psi
Thread Size	�	M6 X 1
Material	�	6al4v Titanium
Resistance	�	2500 ohms
Other	�	Futek/Efe
Rated Output (R.O.)	�	2 +/- 0.25 mV/V
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	10 min., 10 max., 10 test
Bridge Resistance	�	2500 ohms nom.
Non-Linearity	�	of R.O.
Hysteresis	�	of R.O.
Nonrepeatability	�	0.15% of R.O.
Creep	�	of Load
Zero Balance	�	0.25 mV
Temp. Shift Zero	�	� 0.02% of R.O./�F
Temp. Shift Span	�	� 0.02% of R.O./�F
Compensated Temp.	�	68 to 176 �F
Operating Temp.	�	-4 to 302 �F
*Actual level of accuracy depends on mounting method

.Option Package

	- Futek Standard -
�	Other: Relative (gage)

P1941 Ultra Miniature Titanium Pressure Sensor Wiring Code Diagram

FP10970-00230-C
.

Wiring Code

+ Excitation	�	Red
+ Sense	�	- -
+ Signal	�	Green
- Signal	�	White
- Sense	�	- -
- Excitation	�	Black

More Capacities

Capacity	�	87 psi
Thread Size	�	M6 X 1 Contact Us for Other Threads
Material	�	6al4v Titanium
Resistance	�	2500 ohms
Other	�	Futek/Efe
Rated Output (R.O.)	�	2 +/- 0.25 mV/V
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	10 VDC MIN, 10 MAX, 10 VDC TEST
Bridge Resistance	�	2500 ohms nom.
Non-Linearity	�	� -% of R.O.
Hysteresis	�	� -% of R.O.
Combined Linearity/Hysteresis	�	� 0.35% of R.O.
Nonrepeatability	�	� 0.15% of R.O.
Creep	�	� -% of Load
Zero Balance	�	0.25 mV
Temp. Shift Zero	�	� 0.02% of R.O./�F
Temp. Shift Span	�	� 0.02% of R.O./�F
Compensated Temp.	�	68 to 176 �F
Operating Temp.	�	-4 to 302 �F
*Actual level of accuracy depends on mounting method

Capacity	�	145 psi
Thread Size	�	M6 X 1 Contact Us for Other Threads
Material	�	6al4v Titanium
Resistance	�	2500 ohms
Other	�	Futek/Efe
Rated Output (R.O.)	�	2 +/- 0.25 mV/V
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	10 VDC MIN, 10 MAX, 10 VDC TEST
Bridge Resistance	�	2500 ohms nom.
Non-Linearity	�	� -% of R.O.
Hysteresis	�	� -% of R.O.
Combined Linearity/Hysteresis	�	� 0.35% of R.O.
Nonrepeatability	�	� 0.15% of R.O.
Creep	�	� -% of Load
Zero Balance	�	0.25 mV
Temp. Shift Zero	�	� 0.02% of R.O./�F
Temp. Shift Span	�	� 0.02% of R.O./�F
Compensated Temp.	�	68 to 176 �F
Operating Temp.	�	-4 to 302 �F
*Actual level of accuracy depends on mounting method

Capacity	�	290 psi
Thread Size	�	M6 X 1 Contact Us for Other Threads
Material	�	6al4v Titanium
Resistance	�	2500 ohms
Other	�	Futek/Efe
Rated Output (R.O.)	�	2 +/- 0.25 mV/V
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	10 VDC MIN, 10 MAX, 10 VDC TEST
Bridge Resistance	�	2500 ohms nom.
Non-Linearity	�	� -% of R.O.
Hysteresis	�	� -% of R.O.
Combined Linearity/Hysteresis	�	� 0.35% of R.O.
Nonrepeatability	�	� 0.15% of R.O.
Creep	�	� -% of Load
Zero Balance	�	0.25 mV
Temp. Shift Zero	�	� 0.02% of R.O./�F
Temp. Shift Span	�	� 0.02% of R.O./�F
Compensated Temp.	�	68 to 176 �F
Operating Temp.	�	-4 to 302 �F
*Actual level of accuracy depends on mounting method

Capacity	�	580 psi
Thread Size	�	M6 X 1 Contact Us for Other Threads
Material	�	6al4v Titanium
Resistance	�	2500 ohms
Other	�	Futek/Efe
Rated Output (R.O.)	�	2 +/- 0.25 mV/V
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	10 VDC MIN, 10 MAX, 10 VDC TEST
Bridge Resistance	�	2500 ohms nom.
Non-Linearity	�	� -% of R.O.
Hysteresis	�	� -% of R.O.
Combined Linearity/Hysteresis	�	� 0.35% of R.O.
Nonrepeatability	�	� 0.15% of R.O.
Creep	�	� -% of Load
Zero Balance	�	0.25 mV
Temp. Shift Zero	�	� 0.02% of R.O./�F
Temp. Shift Span	�	� 0.02% of R.O./�F
Compensated Temp.	�	68 to 176 �F
Operating Temp.	�	-4 to 302 �F
*Actual level of accuracy depends on mounting method

Capacity	�	1450 psi
Thread Size	�	M6 X 1 Contact Us for Other Threads
Material	�	6al4v Titanium
Resistance	�	2500 ohms
Other	�	Futek/Efe
Rated Output (R.O.)	�	2 +/- 0.25 mV/V
Safe Overload	�	150% of R.O.
Excitation (VDC or VAC)	�	10 VDC MIN, 10 MAX, 10 VDC TEST
Bridge Resistance	�	2500 ohms nom.
Non-Linearity	�	� -% of R.O.
Hysteresis	�	� -% of R.O.
Combined Linearity/Hysteresis	�	� 0.35% of R.O.
Nonrepeatability	�	� 0.15% of R.O.
Creep	�	� -% of Load
Zero Balance	�	0.25 mV
Temp. Shift Zero	�	� 0.02% of R.O./�F
Temp. Shift Span	�	� 0.02% of R.O./�F
Compensated Temp.	�	68 to 176 �F
Operating Temp.	�	-4 to 302 �F
*Actual level of accuracy depends on mounting method
