Futek OEM Pressure Sensors

OEM pressure sensors Futek P724 are thin film, 0.5 to 4.5VDC output, 15 - 30 VDC excitation pressure sensors.

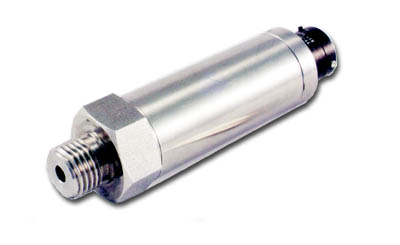

Futek P724 OEM pressure sensor shown with 145 psi capacity. Other capacities available please contact us for details.

OEM pressure sensors from Futek are available in other models please contact us for details.


P725
- Thin Film, 4-20mA output, 12-30 VDC Excitation


P726
- 0.5 to 9.5VDC Analog Output, 15-30VDC Excitation


P727
- 0 to 5VDC Analog Output, 15-30VDC Excitation

  Capacity · 145 psi - Contact Us For Other Capacities
  Thread Size · M10 X 1 - Contact Us For Other Threads
  Material · 17-4 Ph S.S.
  Other · Futek/Efe
  Rated Output (R.O.) · 4.5 +/- 0.025 Vdc
  Safe Overload · 150% of R.O.
  Excitation (VDC or VAC) · 12 min., 30 max., 12 test
  Non-Linearity · of R.O.
  Hysteresis · of R.O.
  Nonrepeatability · 0.1% of R.O.
  Creep · of Load
  Zero Balance · 0.05 VDC
  Temp. Shift Zero · ± 0.015% of R.O./ºF
  Temp. Shift Span · ± 0.015% of R.O./ºF
  Compensated Temp. · 68 to 176 ºF
  Operating Temp. · -4 to 257 ºF

  *Actual level of accuracy
  depends on mounting
  method



.Option Package

- Futek Standard -

· Other: Relative (gage)

P724 Pressure Sensor Wiring Code Diagram


FP10997-00230-C
.


Wiring Code

  + Excitation · Red
  + Sense ·

- -

  + Signal · Green
  - Signal · White
  - Sense · - -
  - Excitation · Black
