Strain Gauge Meters from Futek

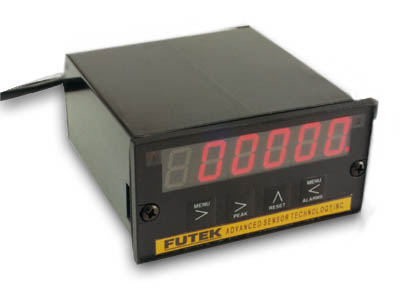

Strain gauge meters Futek D504 provide signal conditioned digital display with 85 to 264 Vac power supply, and are scalable to ±99,999 resolution, with 60 conversions per second,
10 Vdc @ 120 mA max (factory default) / 5 Vdc @ 50 mA (Selectable).

Strain gauge meters Futek D504 provide Peak hold, recall and remote auto tare, and offer a Nema 4 front panel.

Other Futek signal conditioned digital displays, and instrumentation products in this calssification are available please contact us for details.

D501 - Scalable to ±99,999 resolution, 60 conv./sec., Peak hold, 85 to 264 Vac power D501-DC - 9 to 37 DC Power version of Model D501 D502 - Model D501 with Analog Output, Alarm, RS232 options D502-DC - 9 to 37 DC Power version of Model D502 D503 - Model D501 with Analog Output, Alarm & RS485 Options D503-DC - 9 to 37 DC Power version of Model D503

D504 - Model D501 with Analog Output option D504-DC - 9 to 37 DC Power version of Model D504 D505 - Model D501 with Alarm Option D505-DC - 9 to 37 DC Power version of Model D505 D506 - Model D501 with RS232 D506-DC - Model D501 with RS232 and 9 to 37 Vdc Power Supply D507 - Model D501 with RS485

D507-DC - Model D501 with RS485 and 9 to 37 Vdc PowerSupply D531 - Hand held portable digital display w/ 8000 samples/sec., scalable to 9999 resolution w/ floating decimal, RS232C, stores 15 different sensor calibrations. D611 - Color Touch Panel Digital Display with Graphing Funtion, 2000 conv./ sec., Dual setpoing Alarm, and Hold Functions. D612 - Model D611 with ± 5 Vdc and 4 - 20 mA Analog Output and Vdc Power Supply IBT500 JM-2AD
