 High temperature pressure sensors may withstand extreme temperatures ranging from -58ºF to 572ºF.

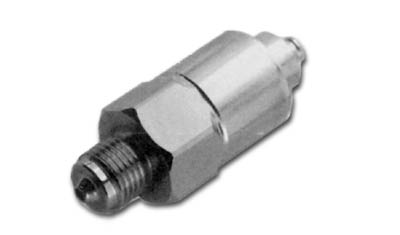

Futek P931 high temperature pressure sensors shown in 87 psi capacity. For other capacities please contact us.
Futek offers other high temperature pressure sensors please contact us for more information.
-
P933 - capacity 6 bar, 16 bar, 40 bar, 100 bar,
250 bar, 400 bar
| Capacity |
· |
87 psi - Contact Us For Other Capacities |
| Thread Size |
· |
M10 X 1 - Contact Us for Other Threads |
| Material |
· |
17-4 Ph S.S. |
| Resistance |
· |
2500 ohms |
| Other |
· |
Futek/Efe |
| Rated Output (R.O.) |
· |
1.5 to 2 mV/V |
| Safe Overload |
· |
150% of R.O. |
| Excitation (VDC or VAC) |
· |
10 min., 10 max., 10 test |
| Bridge Resistance |
· |
2500 ohms nom. |
| Non-Linearity |
· |
of R.O. |
| Hysteresis |
· |
of R.O. |
| Nonrepeatability |
· |
0.2% of R.O. |
| Creep |
· |
of Load |
| Zero Balance |
· |
0.25 mV |
| Temp. Shift Zero |
· |
± 0.015% of R.O./ºF |
| Temp. Shift Span |
· |
± 0.015% of R.O./ºF |
| Compensated Temp. |
· |
68 to 500 ºF |
| Operating Temp. |
· |
-4 to 572 ºF |
| *Actual level of accuracy
depends on mounting
method |
|
 |
| .Option Package |
|
- Futek Standard - |
| · |
Other: Relative (gage) |
|
 |
|
| P931 High Temperature Pressure Sensor Wiring Code Diagram |
|
| FP11207-00230-C
. |
| Wiring Code |
|
| + Excitation |
· |
Red |
| + Sense |
· |
- - |
| + Signal |
· |
Green |
| - Signal |
· |
White |
| - Sense |
· |
- - |
| - Excitation |
· |
Black |
|
|
|
|
|
|
