| Low cost piezo electric Accelerometer with built in amplifier RD279
The RD279 is a low cost piezo electric accelerometer manufactured using Lamerholm Electronics advanced sensor technology already proven in many successful automotive and industrial applications. The sensor element and the associated signal processing electronics are encapsulated in an aluminium housing to provide good environmental resistance and electrical screening. Connections to the accelerometer are made via integral screened cable.
The case is insulated from the signal ground but connected to the cable screen to allow for maximum flexibility in earting arrangements.
Key Features
|
|
- Integral amplifier
- Single 5V supply operation
- 2 Hz to 5 kHz frequency response
- Extended temperature range
- Small Size - 2cm cube
- Low mass
- Bolt on construction
- Fully screened
- Low power consumption
|
Specification
Performance (@ 25°C,5.000V supply unless stated)
| |
min |
max |
unit |
| Sensitivity (@200Hz) |
80 |
120 |
mV/g |
| Frequency range(<3dB error) |
2 |
5000 |
Hz |
| Variation of sensitivity over temperature |
-10 |
+5 |
% |
| Transverse sensitivity (@200Hz) |
|
2 |
% |
| Noise (5 kHz Bandwidth) |
|
2.5 |
mg rms |
| Maximum acceleration (operate) |
-20.0 |
+20.0 |
g pk |
| Maximum acceleration (survival, repetitive ½ sine) |
-100 |
+100 |
g pk |
| Maximum acceleration (drop 6 times on concrete) |
1 |
|
m |
| DC Bias at zero acceleration |
2.35 |
2.65 |
V |
| Variation of DC bias over temperature |
-0.15 |
+0.15 |
V |
| Supply Voltage |
4.75 |
10 |
V |
| Supply Current |
|
2 |
mA |
| Operating Temperature |
-30 |
+85 |
°C |
| Case material (aluminium) |
|
|
|
| Weight (excluding cable) |
|
18 |
g |
| Cable Length |
1.0 |
1.2 |
m |
| Supplied accessories (M2 mounting screws and washers) |
Connections
The RD279 is designed for operation from a single 5V supply and its output is normally biased at one half of that supply. The internal bias voltage is available on the Bias connection and may be forced to a different voltage if required. This allows the RD279 to be used with dual supplies.
| Wire Colour |
Function |
| Red |
+5V Supply |
| Black |
OV Signal Common |
| Green |
Bias |
| White |
Output |
| Screen |
Connected to case |
Some care is required in the use of the Bias connection and customers are invited to discuss their application with Lamerholm Electronics before proceeding.

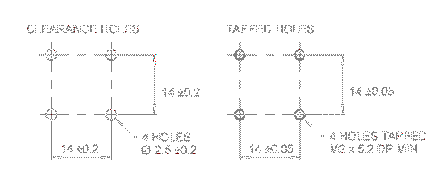

Installation
If you would like to find out more, please contact us.
The RD279 accelerometer includes features which are the subject of world wide patents or patent applications. While the information contained in this document is believed to be accurate no responsibility can be accepted for its use, nor for any infringements of patents or other rights of third parties which may result from its use. Lamerholm Electronics reserve the right to modify performance specifications without notice.
|
