| The VP73 is a low cost piezo electric accelerometer designed using the well proven centre mounted compression principle. It offers a good frequency range along with industry standard mounting and connector. It is designed for general purpose laboratory and industrial vibration measurement and it low cost make it attractive for OEM applications.
Key Features
 |
- High performance
- Low cost
- Stainless steel
- Microdot connector
|
Specification
All performance data applies at 20°C unless stated
| |
min |
max |
unit |
| Frequency response : ref 1 kHz |
|
|
|
| 1 Hz - 10 kHz |
-10 |
+10 |
% |
| 1 Hz - 15 kHz |
-10 |
+20 |
% |
| Charge sensitivity |
12 |
18 |
pC/g |
| Capacitance |
800 |
1200 |
pf |
| Mounted resonance |
35 |
|
kHz |
| Transverse sensitivity |
|
5 |
% |
| Operating Temperature |
-40 |
+125 |
°C |
| Maximum acceleration (operate) |
-1000 |
+1000 |
g pk |
| Weight |
16 |
20 |
gm |
| Mounting |
10-32 Detachable stud |
| Mounting torque |
|
|
|
| Recommended |
1.5 |
|
N/m |
| Maximum |
2 |
|
N/m |
| Connections |
Integral microdot socket |
| Case material |
Stainless steel |
| Seal |
Epoxy |
| Accessories |
Adapter stud |
| Marking |
Type and serial number |

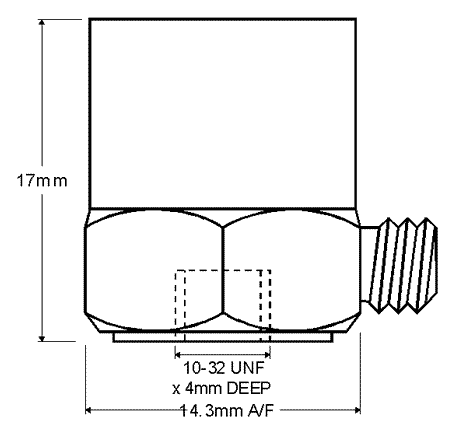

Dimensions
If you would like to find out more, please contact us.
The VP73 accelerometer includes features which are the subject of world wide patents or patent applications. While the information contained in this document is believed to be accurate no responsibility can be accepted for its use, nor for any infringements of patents or other rights of third parties which may result from its use. Lamerholm Electronics reserve the right to modify performance specifications without no
|
