 The M-1000 sensor controller is a multipurpose dual sensor controller with a wide range of uses in the process control field. It was designed to work with any of Migatron's analog output sensors as well as a temperature probe for temperature compensation. Its easy program modes allow instruction entry and review of previously programmed values. It accepts a standard 0-20 mA, 4-20 mA, 0-5V, 2-10V, 0-10V analog input.
The microcontroller digitally scales the inputs with near and far scaling points, then this information is displayed on a 4 1/2 digit digital display. This attribute is also contained in an optional second channel input for added expandability.
The sensor controller can also supply 24 volts up to 110 mA to the sensors. The outputs consist of four solid state relays for use as outside limit monitors. These outputs can be programed as either normally open or normally closed and can switch 2-130 VAC or VDC 100 mA DC or 50 mA AC continuous.
A RS485 serial communications port is also supplied. Communication can take place for baud rates of 300, 1200, 2400, 4800, and 9600. Each sensor controller can be configured to transmit standard ASCII code up to a maximum distance of 10,000 feet. The M-1000 samples its inputs at a rate of 25 times per second, and includes autozeroing. Its analog to digital converter is accurate to +- .05 mV and its converter is also rated as having a drift rating of 50 ppm per degree Celsius. The M-1000 sensor controller is powered by 120 VAC, 8 watts and all of the inputs and outputs are tightly secured with reliable screw clamp cable connectors.
|
|
- Sealed Front Panel (Nema) 4
|
|
|
|
|
|
|
- Communications Port RS485
|
|
|
|
- Power Supply 110 mA at 24 VDC
|
 Download Migatron Sensor Controller Brochure |
|

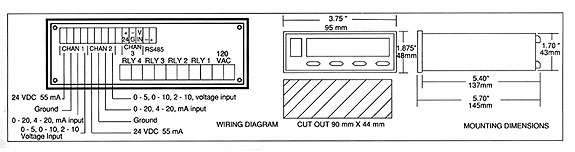

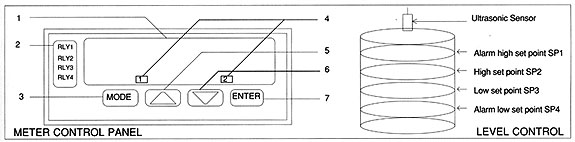

1) 4 1/2 Digit Display, used to display the data to the user, and to display the set values while programing.
2) Relay Indicator L.E.D.s, to indicate which outputs are on, and flicker when in the program state.
3) Program Mode selector when pressed displays program choices.
4) L.E.D. Indicators for channel 1 and channel 2.
5) Up Cursor increases numerical value.
6) Down Cursor decreases numerical value.
7) Enter button puts program choices into memory.
|
The M-1000 sensor controller provides 4 individual set points with independent relay outputs that can be programmed either N.O. or N.C. The most common application for this unit is in level control. Using the Mode Selector along with the Up and Down Cursors, a High set point (SP2) and a low set point (SP3) can be set to keep a level in between a specific window. Then using the same function keys an Alarm High (SP1) and an Alarm Low (SP4) set point can be set to prevent the level from getting dangerously high or low. During this operation the M-1000 is also providing the user with a continuous position update of the level by means of its digital display. This display can be scaled to read out in many different units such as inches, centimeters, gallons, etc.
|
|
