Hall-Effect Proximity Switch Sensor (HP)

Product Data Sheet

Hall-Effect Proximity Switch Sensor (HP)

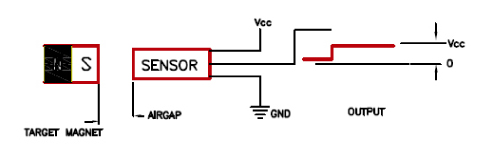

Non-contact magnetic sensor proximity switch produces a digital output. The output switches between logic low (operate point) and logic high (release point) with presence and absence of a magnet as a target. The difference between the magnetic operate and release points is called the hysteresis of the device. The built-in hysteresis circuitry allows clean switching of the output even in the presence of external mechanical vibration and electrical noise.

General Specification

Technical Specifications

A. Electrical Performance
1. Supply Voltage :
(Vcc)
Standard 4.5 VDC to 24 VDC
Optional : 5.5VDC to 36VDC
2. Target : Permanent magnet, with customer long Range Sensing
3. Airgap : 0.005" To 0.750" (0.126mm to 19.035mm)
4. Output Signal : NPN Open collector with 4.7k ohms internal pull-up Resistor (Digital TTL Compatible).
Optional : No pull-up resistor.
5. Output Voltage : Low= 400mV Max at 10mA Sink current
High= Follows Vcc
Optional : Low= 400 mV Max, High= 5.5 VDC
7. Supply Current : 10mA Max
8. Output Saturation Voltage : 400mA Max
9. Output Current :
(I sink)
50mA continues operation
10. Output Leakage Current : 10uA Max.
11. Output Rise Time : 1.00us Max
12. Output Fall Time : 1.00us Max.
13. Magnetic Operate Point(Bop) : 180 Gauss Nom.
14. Magnetic Release Point(Brp) : 140 Gauss Nom.
15. Magnetic Hysteresis(Bh) : 40 Gauss Nom.
16. Switching Frequency : DC to 200KHZ
17. Protection : Reverse Polarity, -50 V Reverse, Load Dump: 60V
Optional : Input Transient Protection, Short circuit protection.
18. Operating Temperature : -4° F to +221° F (-20°C to 105°C)
Optional : -40°F to +302°F (-40°C to 150°C)

B. Application
Automotive Engine speed measurement
Dynamometer
Crankshaft
Gear box
Speed sensor
Power generator Motor speed measurement
Turbine flow measurement
Exercise equipments
Flow meter
Off-Highway
Printer Industry
