A.
|
Electrical Performance
|
|
1.
|
Supply Voltage :
(Vcc)
|
Standard 4.5 VDC to 24 VDC.
|
 |
|
Optional :
|
5.5VDC to 36VDC.
|
|
|
2.
|
Target :
|
Ferrous material, single tooth or slot To 32 D.P
|
|
|
3.
|

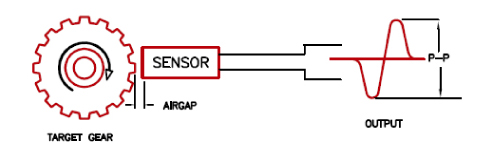

Airgap :
|
0.005" To 0.120" (0.126mm to 3.045mm)
|
|
|
4.
|
Speed Range :
|
32 TO 1000 Inch/Sec
|
|
|
5.
|
Output Signal :
|
Square wave TTL, CMOS Compatible. With internal pull-up resistor.
|
|
|
Optional :
|
No pull-up resistor.
|
|
|
6.
|
Output Voltage :
|
Low= 400mV Max
High= Follows Vcc
|
|
|
Optional :
|
Low= 400 mV Max
High= 5 VDC
|
|
|
7.
|
Output Current :
(I sink)
|
16mA continuous operation
|
|
|
Optional :
|
50mA
|
|
|
8.
|
Output Duty Cycle :
|
50% ±15%
|
|
|
9.
|
Protection :
|
Reverse Polarity.
|
|
|
Optional :
|
Input Transient Protection, Short circuit protection.
|
|
|
10.
|
Operating Temperature :
|
32°F to + 158°F (0°C to +70°C)
|
|
|
Optional :
|
-4°F to + 257°F (-20°C to +125°C)
|
| |
|
B.
|
Application
|
|
|
Automotive
|
Engine speed measurement
Dynamometer
Crankshaft
|
|
|
Electric Power Generator
|
Motor speed measurement
Turbine flow measurement.
|
|
|
Exercise Equipments
|
Motor speed sensor
|
|
|
Flow Meter
|
|
|
|
Locomotive
|
Crank shaft
|
|
|
Machinery
|
|
|
|
Tachometer
|
|
|
|
Off-Highway
|
|
| |
|
C.
|
Features and Benefits
|
| |
| |
Constant amplitude square wave (Digital) output
Reverse polarity protected
Wide speed range
Wide airgap range
Customized for most environment
Not sensitive to the orientation
|
